隔离器芯
Features:
Low insertion loss
Compact Size
High Isolation
Specifications:
Optical Transmitter
Isolator/WDM Hybr
Single Stage
产品描述
Features:
- Low insertion loss
- Compact Size
- High Isolation
Specifications:
- Optical Transmitter
- Isolator/WDM Hybr
Single Stage
|
Item
|
P Grade
|
A Grade
|
Unit
|
|
Operating Wavelength Range
|
1 C+ 15
|
1 C+ 15
|
nm
|
|
Peak Isolation( A c, all SOP 23°C)
|
≥40
|
≥39
|
dB
|
|
Min. Isolation (Over WL, all SOP,23°C)
|
≥31
|
≥30
|
dB
|
|
Max. Insertion Loss (Over WL, all SOP, 23°C)
|
≤0.12
|
≤0.15
|
dB
|
|
PDL
|
≤0.05
|
≤0.07
|
dB
|
|
PMD
|
50.25 (Low PMD 0.05)
|
ps
|
|
|
Optical Power
|
≤300
|
mW
|
|
|
Dimension
|
0D2.8 x ID 1.81 x L4
|
mm
|
|
|
Operating Temperature
|
-20~75
|
°C
|
|
|
Storage Temperature
|
-40~8
|
°C
|
|
Dual Stage
|
Item
|
P Grade
|
A Grade
|
Unit
|
|
Operating Wavelength Range
|
A C+ 15
|
Л С+ 15
|
nm
|
|
Min. Isolation (Over WL, all SOP,23°)
|
≥50
|
≥46
|
dB
|
|
Max. Insertion Loss(Over WL, all SOP,23°C)
|
≤0.20
|
≤0.25
|
dB
|
|
PDL
|
≤0.10
|
M0.12
|
dB
|
|
PMD
|
≤0.05
|
ps | |
|
Optical Power
|
M300
|
mW
|
|
|
Dimension
|
0D2.8 xID 1.81 x L4
|
mm
|
|
|
Operating Temperature
|
-20~75
|
°C
|
|
|
Storage Temperature
|
-40~85
|
°C
|
|

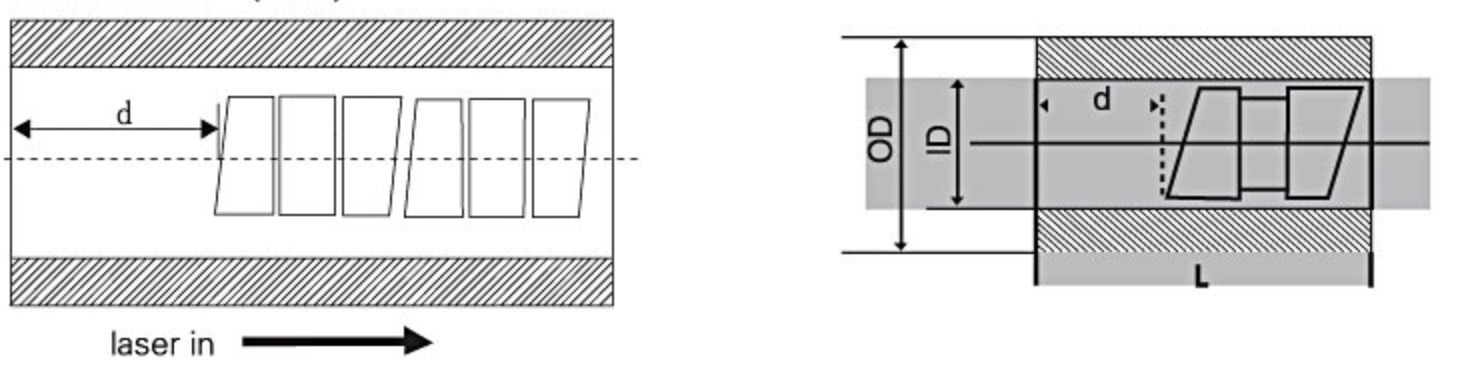

Dimension: (mm)
注：所有参数、尺寸可根据客户实际要求生产！
